Combustion Analysis

Stoichiometric Combustion (Carbon, Hydrogen, Sulfur, Coal, Oil and Gas)



Introduction


This section provides a combustion analysis for a few typical fuel cases (carbon, hydrogen, sulfur, coal, oil and gas) when the fuel reacts with air at stoichiometric conditions.


Analysis


In the presented combustion analysis, both fuel and air are at standard inlet combustion conditions of 298 [K] and 1 [atm] of absolute pressure. Furthermore, combustion is complete and with no heat loss.


During combustion, a large amount of reactants' chemical energy gets released in the form of thermal energy.


Fuel higher heating value (HHV) or heat of combustion is the difference between the reactants enthalpy value and the combustion products enthalpy value per unit mass amount of fuel at the standard reference temperature, which is 298 [K].



When the reactants specific enthalpy value is equal to the combustion products specific enthalpy value, one can calculate the combustion products flame temperature or adiabatic temperature.


Figure 1 presents how the reactants and combustion products specific enthalpy values change with an increase in the temperature.

Figure 1 - Reactants and Combustion Products Specific Enthalpy vs Temperature


Physical properties for both reactants and combustion products are very important and need to be known in order to carry out successful combustion calculations.



Figure 2 presents how the reactants and combustion products species specific enthalpy values change with the temperature.  The physical properties provided in Figure 2 come from the JANAF Thermochemical Data - Tables, 1970.

Figure 2 - Reactants and Combustion Products Species Specific Enthalpy vs Temperature


It is interesting to note that the specific enthalpy value for basic combustion elements such as carbon (C), hydrogen (H2), sulfur (S), oxygen (O2) and nitrogen (N2) is equal to zero at the standard combustion conditions of 298 [K] and 1 [atm].


Also, it should be mentioned that for ideal gas species, the specific enthalpy values are only dependent on the temperature.
In addition to knowing the reactants and combustion products physical properties, for any kind of combustion analysis and calculations, it is important to know both oxidant and fuel compositions.



Oxidant composition is usually given on the mole/volume basis.  For solid and liquid type fuels, the fuel composition is given on the weight basis for a unit mass amount.  For the gas type fuels, the fuel composition is provided on the mole/volume basis for a unit volume amount.  In this analysis, methane (CH4) is considered as the gas fuel.  In order to keep the combustion analysis simple and straightforward, the CH4 composition is provided on the weight basis.


Table 1 provides the standard air composition.

Table 1 - Oxidant Composition

Oxidant

Air

N

[kg/kg]

0.767

O

[kg/kg]

0.233

N

[kmol/kmol]

0.790

O

[kmol/kmol]

0.210

Table 2 provides the fuel composition.


Table 2 - Fuel Composition

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

C

[kg/kg]

1.000

0.000

0.000

0.780

0.860

-

H

[kg/kg]

0.000

1.000

0.000

0.050

0.140

-

S

[kg/kg]

0.000

0.000

1.000

0.030

0.000

-

N

[kg/kg]

0.000

0.000

0.000

0.040

0.000

-

O

[kg/kg]

0.000

0.000

0.000

0.080

0.000

-

H2O

[kg/kg]

0.000

0.000

0.000

0.020

0.000

-

CH4

[kg/kg]

-

-

-

-

-

1.000

Again, in this combustion analysis, only the stoichiometric combustion is analyzed.  Results of such analysis are provided, including combustion products composition on the weight and mole/volume basis, flame temperature, stoichiometric oxidant to fuel ratio and fuel higher heating value (HHV).

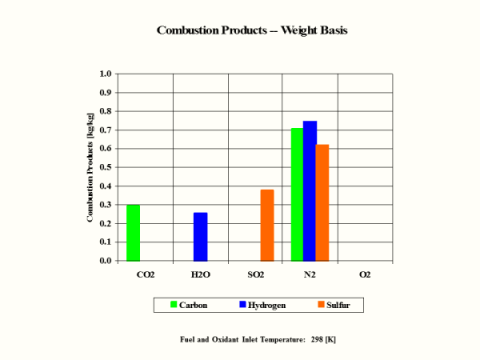

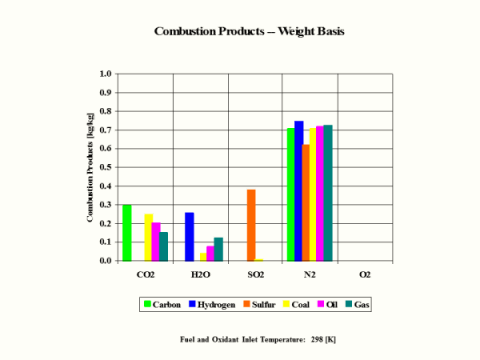

Table 3 provides the combustion products composition on the weight basis.



Table 3 - Combustion Products Composition on the Weight Basis

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

CO2

[kg/kg]

0.295

0.000

0.000

0.249

0.202

0.151

H2O

[kg/kg]

0.000

0.255

0.000

0.041

0.080

0.124

SO2

[kg/kg]

0.000

0.000

0.378

0.005

0.000

0.000

N2

[kg/kg]

0.705

0.745

0.622

0.705

0.718

0.725

O2

[kg/kg]

0.000

0.000

0.000

0.080

0.000

0.000

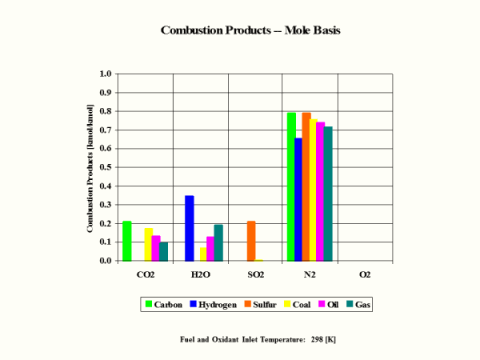

Table 4 provides the combustion products composition on the volume basis.


Table 4 - Combustion Products Composition on the Volume Basis

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

CO2

[kmol/kmol]

0.210

0.000

0.000

0.170

0.132

0.095

H2O

[kmol/kmol]

0.000

0.347

0.000

0.068

0.129

0.190

SO2

[kmol/kmol]

0.000

0.000

0.210

0.002

0.000

0.000

N2

[kmol/kmol]

0.790

0.653

0.790

0.759

0.739

0.715

O2

[kmol/kmol]

0.000

0.000

0.000

0.080

0.000

0.000

When considering coal, oil and gas as the fuel, coal has the largest amount of CO2 in the combustion products on both weight and mole basis.

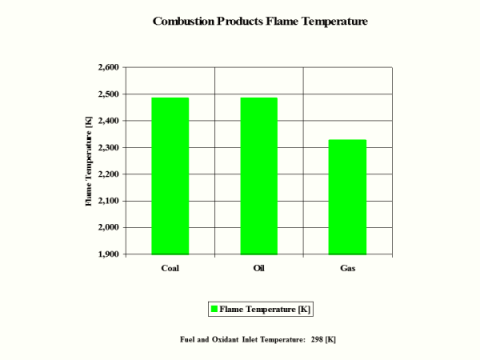

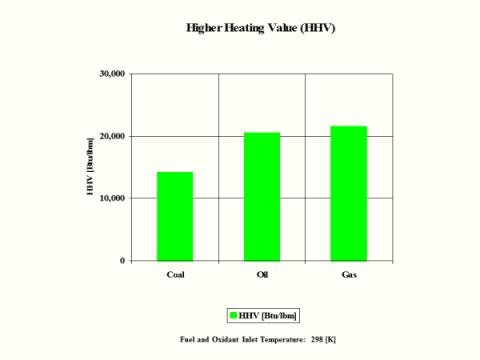

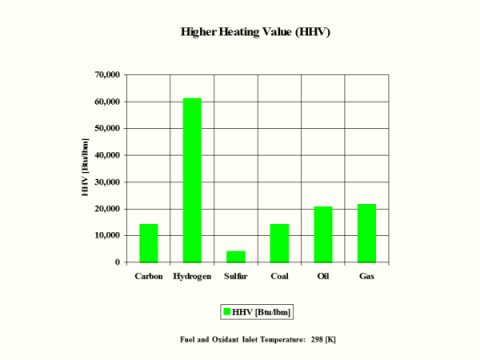

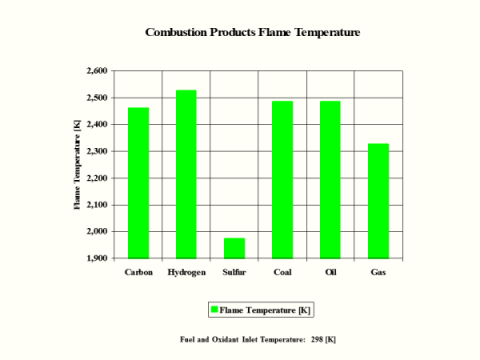

Table 5 provides the combustion products flame temperature, stoichiometric oxidant to fuel ratio and fuel higher heating value.


Table 5 - Combustion Products Flame Temperature, Stoichiometric Oxidant to Fuel Ratio
and Fuel Higher Heating Value





Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas



Flame

Temperature

[K]

2,460

2,525

1,972

2,484

2,484

2,327

Stoichiometric

Oxidant to Fuel

Ratio

[/]

11.444

34.333

4.292

10.487

14.649

17.167





HHV

[Btu/lbm]

14,094

60,997

3,982

14,162

20,660

21,563

Stoichiometric oxidant to fuel ratio is the mass of air required for complete combustion of a unit mass of fuel.  Thus, 1 [kg] of carbon fuel requires 11.444 [kg] of air for complete, ideal combustion.


Today, global warming is becoming more evident and it is being said that it is primarily caused by CO
2 emissions.  A detailed combustion analysis, as it is provided here, can be very useful in determining different fuel and technology scenarios that would result in the reduction of current CO2 emissions.



Assumptions

Species Molecular Weight

Species

Molecular Weight

[kg/kmol]

C

12



H2

2



S

32



O2

32



N2

28



CO2

44



 H2O

18



S2O

64



CH4

16



Stoichiometric Oxidant and Combustion Products

Mole Flow Rates for 1 [kmol] of Fuel Species

Fuel



Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

Fuel

Composition

Oxidant

Composition

C

[kmol]

1

0

0

1

1

0

H2

[kmol]

0

1

0

1

1

0

S

[kmol]

0

0

1

1

0

0

CH4

[kmol]

0

0

0

0

0

1

O2

[kmol]

1

0.5

1

2.5

1.5

2

N2

[kmol]

3.762

1.881

3.762

9.404

5.642

7.524

CO2

[kmol]

1

0

0

1

1

1

Combustion Products

Composition

H2O

[kmol]

0

1

0

1

1

2

SO2

[kmol]

0

0

1

1

0

0

O2

[kmol]

0

0

0

0

0

0

N2

[kmol]

3.762

1.881

3.762

9.404

5.642

7.524

Stoichiometric Oxidant to Fuel Ratio, Oxidant and Combustion Products

Mass Flow Rates for 1 [kmol] of Fuel Species

Fuel



Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

Fuel

Composition

Oxidant

Composition

C

[kg]

12

0

0

12

12

0

H2

[kg]

0

2

0

2

2

0

S

[kg]

0

0

32

32

0

0

CH4

[kg]

0

0

0

0

0

16

O2

[kg]

32

16

32

80

48

64

N2

[kg]

105.336

52.668

105.336

263.312

157.976

210.672

CO2

[kg]

44

0

0

44

44

44

Combustion Products

Composition

H2O

[kg]

0

18

0

18

18

36

SO2

[kg]

0

0

64

64

0

0

O2

[kg]

0

0

0

0

0

0

N2

[kg]

105.336

52.668

105.336

263.312

157.976

210.672

Stoichimetric

Oxidant to Fuel

Ratio

[/]

11.444

34.333

4.292

7.463

14.712

17.167

Both fuel and air are at standard inlet combustion conditions of 298 [K] and 1 [atm] of absolute pressure.


Furthermore, combustion is complete and with no heat loss.

Governing Equations


Fuel higher heating value (HHV) or heat of combustion is the difference between the reactants enthalpy value and the combustion products enthalpy value per unit mass amount of fuel at the standard reference temperature, which is 298 [K].


When the reactants specific enthalpy value is equal to the combustion products specific enthalpy value, one can calculate the combustion products flame temperature or adiabatic temperature.


Input Data


Table 1 - Oxidant Composition

Table 2 - Fuel Composition

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

C

[kg/kg]

1.000

0.000

0.000

0.780

0.860

-

H

[kg/kg]

0.000

1.000

0.000

0.050

0.140

-

S

[kg/kg]

0.000

0.000

1.000

0.030

0.000

-

N

[kg/kg]

0.000

0.000

0.000

0.040

0.000

-

O

[kg/kg]

0.000

0.000

0.000

0.080

0.000

-

H2O

[kg/kg]

0.000

0.000

0.000

0.020

0.000

-

CH4

[kg/kg]

-

-

-

-

-

1.000

Oxidant

Air

N

[kg/kg]

0.767

O

[kg/kg]

0.233

N

[kmol/kmol]

0.790

O

[kmol/kmol]

0.210

Results


Table 3 - Combustion Products Composition on the Weight Basis

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

CO2

[kg/kg]

0.295

0.000

0.000

0.249

0.202

0.151

H2O

[kg/kg]

0.000

0.255

0.000

0.041

0.080

0.124

SO2

[kg/kg]

0.000

0.000

0.378

0.005

0.000

0.000

N2

[kg/kg]

0.705

0.745

0.622

0.705

0.718

0.725

O2

[kg/kg]

0.000

0.000

0.000

0.080

0.000

0.000

Table 4 - Combustion Products Composition on the Volume Basis

Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas

CO2

[kmol/kmol]

0.210

0.000

0.000

0.170

0.132

0.095

H2O

[kmol/kmol]

0.000

0.347

0.000

0.068

0.129

0.190

SO2

[kmol/kmol]

0.000

0.000

0.210

0.002

0.000

0.000

N2

[kmol/kmol]

0.790

0.653

0.790

0.759

0.739

0.715

O2

[kmol/kmol]

0.000

0.000

0.000

0.080

0.000

0.000

Table 5 - Combustion Products Flame Temperature, Stoichiometric Oxidant to Fuel Ratio
and Fuel Higher Heating Value





Fuel

Carbon

Hydrogen

Sulfur

Coal

Oil

Gas



Flame

Temperature

[K]

2,460

2,525

1,972

2,484
2,484

2,327

Stoichiometric

Oxidant to Fuel

Ratio

[/]

11.444

34.333

4.292

10.487

14.649

17.167





HHV

[Btu/lbm]

14,094

60,997

3,982

14,162

20,660

21,563

Figures

Conclusions


Hydrogen as the fuel has the highest flame temperature, requires the most mass amount of oxidant/air in order to have complete combustion per unit mass amount of fuel and the largest fuel higher heating value.


When hydrogen reacts with oxidant/air, there is no CO2 present in the combustion products.


References


JANAF Thermochemical Data - Tables, 1970
